Overview

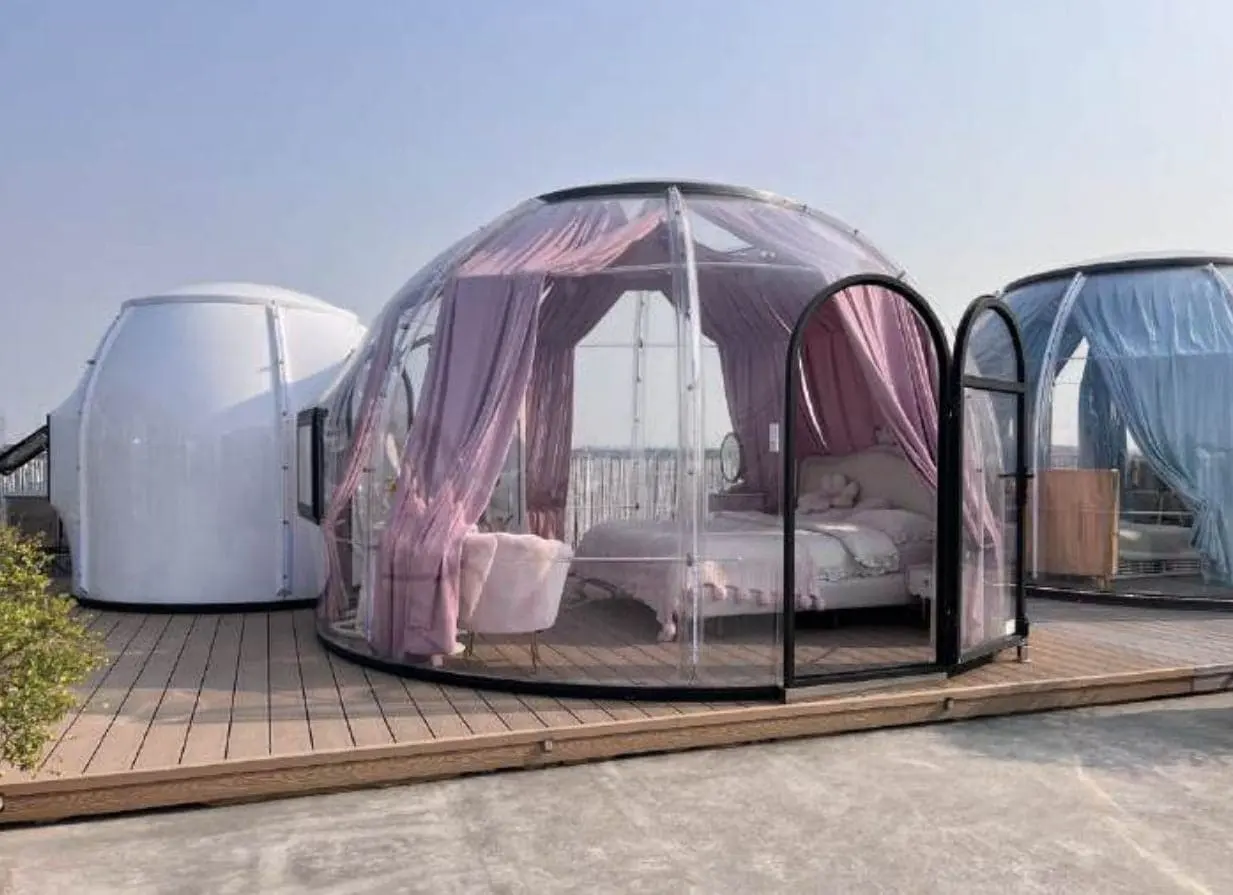

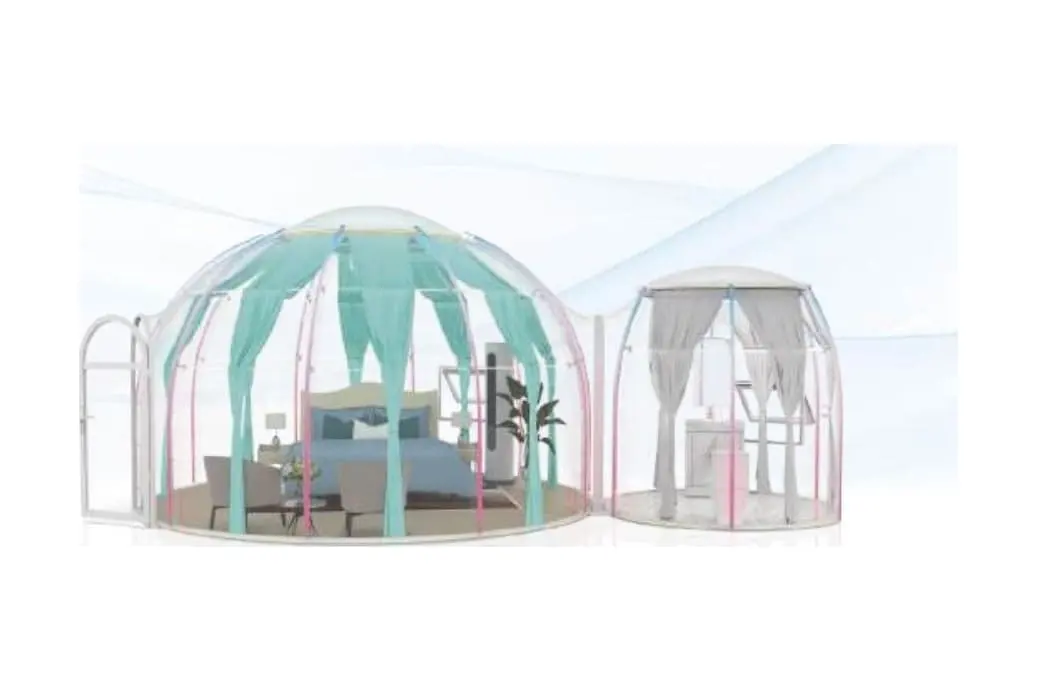

The C3 combines domes of different sizes into one room and one bathroom or two bedroom types to meet different needs. The circular design disperses wind and is rated safe in a 12 stage typhoon. Modularised on site assembly suits any terrain and saves delivery cost. Shown: Ø5m + Ø2.5m, 24.52m². Other combinations include Ø4m + 2.5m 17.4m², Ø4.5m + 2.5m 20.8m², Ø6m + 2.5m 33.2m², Ø5m + 4m + 2.5m 37m² and Ø6m + 4m + 2.5m 45.7m².
Gallery

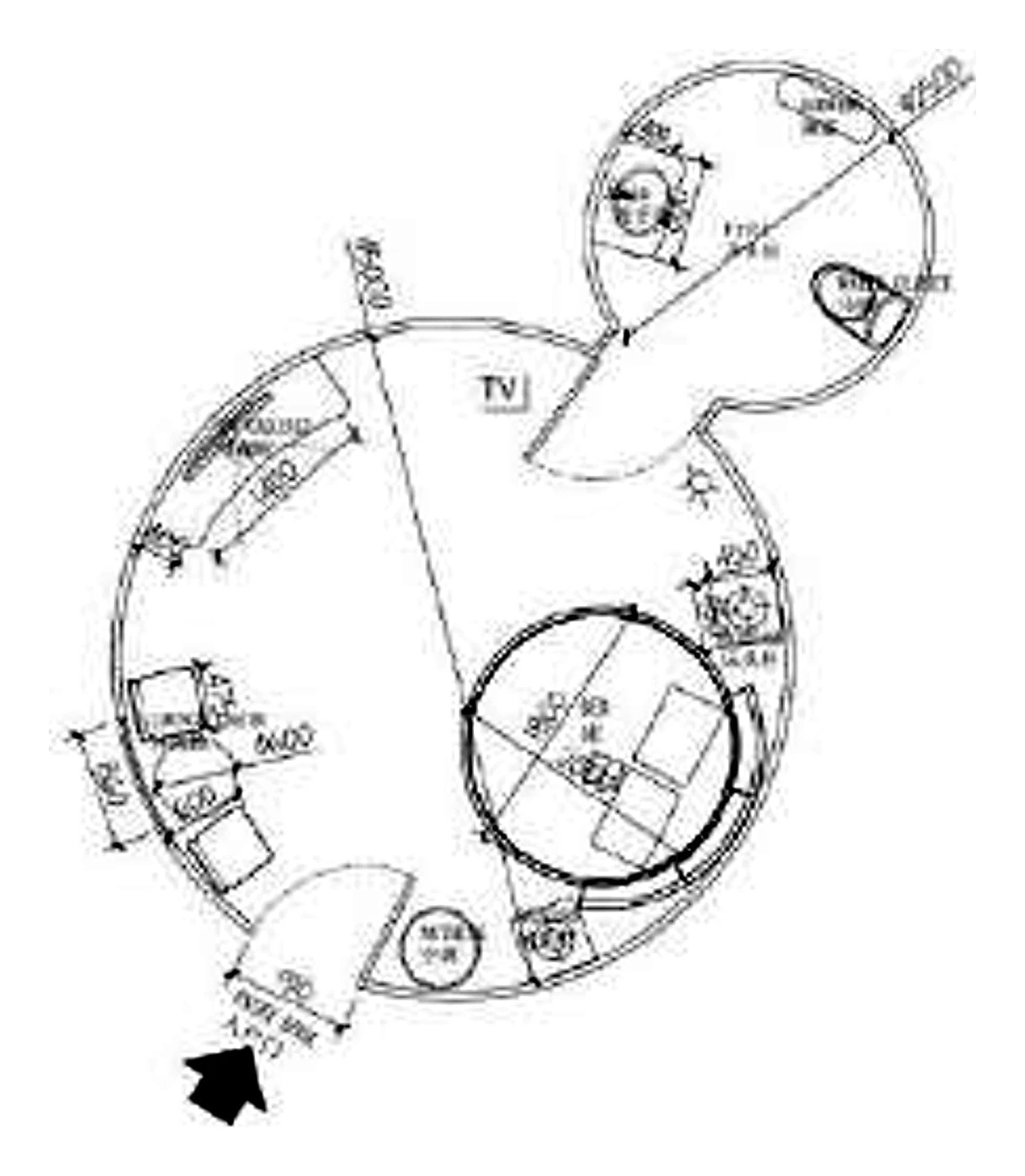

Photos and floor plans
Features & materials
Engineered, specified, finished
Standard configuration
- Shell
- PC transparent housing and PC dome, with a UV coating
- Doors & windows
- Aluminium doors; enlarged push pull aluminium alloy windows for ventilation
- Base
- Aluminium base profile with seamless splicing
- Fixings
- 304 stainless steel screws, longer screws with high load bearing capacity
- Lock
- Physical door lock
- Details
- Joint doors connect domes; roof ventilation system; external clip on light strip, 100% waterproof
Options
- Climate
- Top smoke extraction system; shading system; air conditioner
- Lighting
- LED ambient lighting system; various lamps
- Openings
- Insect screen doors and windows
- Furniture
- Double bed, sofa, coffee table, desk and chair
- Bathroom
- Bathroom, toilet, bathtub, mirror, hanger and washstand
- Appliances
- LCD TV and refrigerator
- Flooring
- Bathroom flooring, moisture mats, anti corrosive wood flooring
- Layout
- Exclusive customised layout plan
Delivery & installation
From factory to site
-
Packing
PC boards, doors, windows and profiles are foam packed at the factory and loaded into a 40ft high cube container.
-
Foundation
Prepare the foundation before delivery, and plan water and electricity. Detailed instructions and drawings are provided.
-
Installation
Panels connect with snap fasteners, no specialist builders or equipment. Several domes can be installed in a day, with drawings or video instructions provided.
Questions
About this model
Which sizes are available?
C1 round domes range from Ø2.5m to 7m; C2 rectangular domes come in lengths from 5.5m to 10m; C3 twin domes pair a Ø4 to 6m dome with a Ø2.5m dome. Other sizes are available on request.
Will it get hot inside?
The UV coating blocks ultraviolet rays and a roof ventilation system keeps air moving. Shading, smoke extraction and air conditioning are available as options.
C3 Dome House
Make it yours.
Tell us about your site. We will confirm pricing, configuration and delivery for this model.
