E Series
Capsule House
Spaceship inspired capsules in an all aluminium shell, with curved glass and 270° floor to ceiling windows, for hotels, B&Bs and private retreats by the sea, a lake, in the mountains or the desert.
- 6 Models From the compact E3 to the two storey D8
- 47.6m² + 27m² Largest model, D8 First floor suite plus second floor terrace
- 270° Glazing Floor to ceiling windows, 6+15A+6mm Low E glass
- 30 years Aluminium shell 2.5mm plate with fluorocarbon baked paint
About the series
Live inside the view
Every capsule sits on a 100 × 100mm galvanised steel frame inside a 2.5mm aluminium shell, insulated with extruded polystyrene and sprayed polyurethane foam. The E3 is the compact one bedroom model; the E5 and E6 add length and curved glass; the best selling E8 places two rooms around a central bathroom, with an enclosed version for cold climates; and the D8 adds a rooftop terrace inspired by luxury yachts.
- Hotels, resorts and B&Bs
- Scenic retreats by the sea, lakes or mountains
- Private residences and self living
- Cold regions (E8 without balcony)
6 to 10 t Placed by crane onto 4 to 6 concrete footings or a steel foundation
The models
E Series models
Six capsule houses, from the 17.92m² E3 to the two storey D8.
E3 Capsule House
A compact 17.92m² capsule with a bedroom, bathroom and 270° floor to ceiling glass.
- Size
- 17.92m²
- L × W × H
- 5.6m × 3.2m × 3.2m
From $89,000
View model: E3 Capsule House

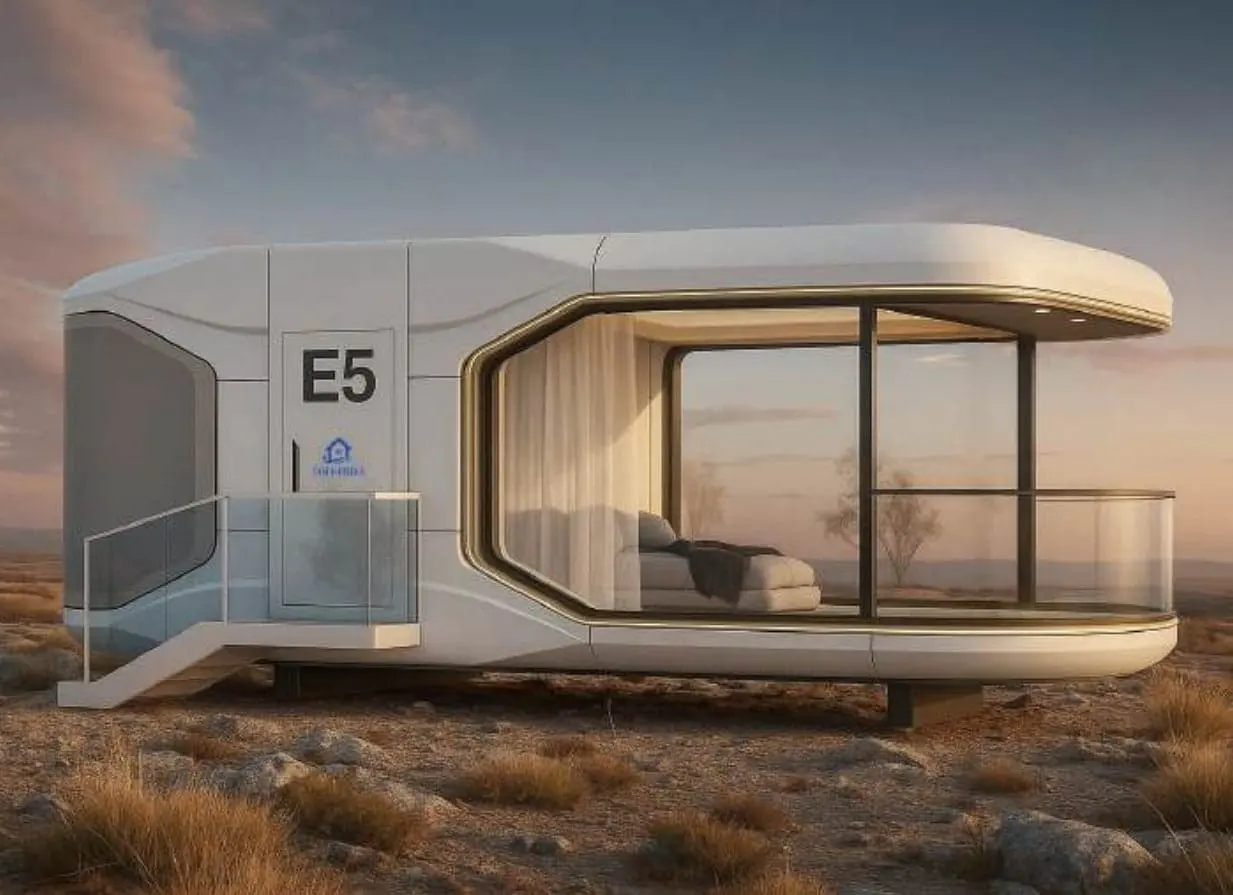

E5 Capsule House
A 27.2m² capsule with curved glass, a bedroom and a bathroom, living amid the scenery.
- Size
- 27.2m²
- L × W × H
- 8.5m × 3.2m × 3.2m
From $115,000
View model: E5 Capsule House

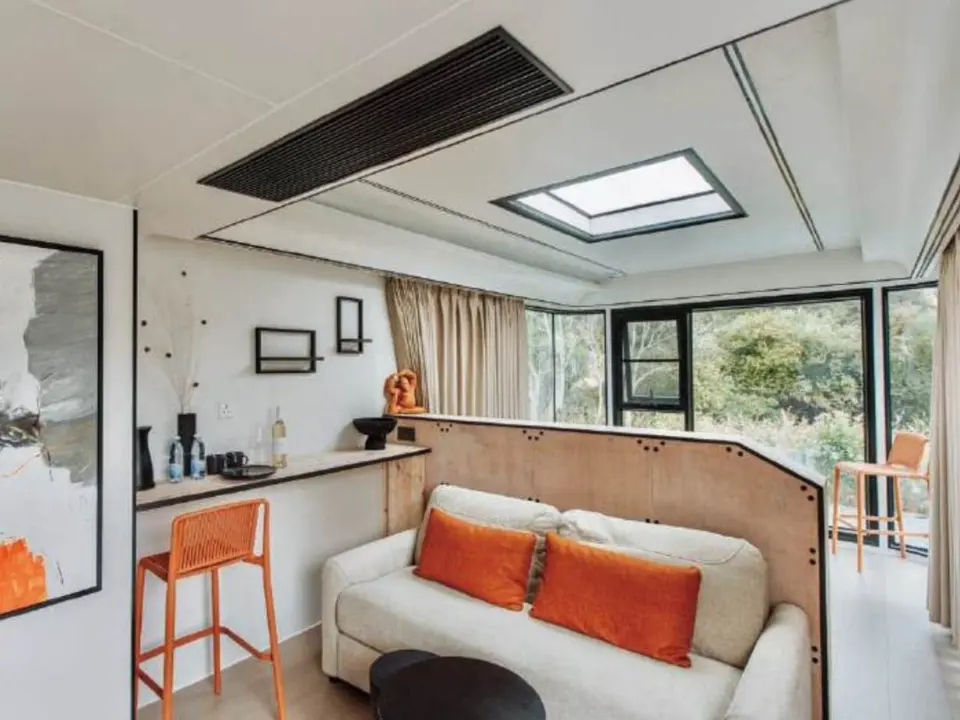

E6 Capsule House
The upgraded E5: more curved lines, 270° glazing and a large balcony in 27.2m².
- Size
- 27.2m²
- L × W × H
- 8.5m × 3.2m × 3.2m
From $125,000
View model: E6 Capsule House
E8 Capsule House
The best selling capsule: 36.8m², two glazed rooms, a central bathroom and an oversized balcony.
- Size
- 36.8m²
- L × W × H
- 11.5m × 3.2m × 3.2m
From $146,000
View model: E8 Capsule House
E8 Capsule House (no balcony)
The E8 without its balcony: a larger front room and better insulation for cold regions.
- Size
- 36.8m²
- L × W × H
- 11.5m × 3.2m × 3.2m
From $142,000
View model: E8 Capsule House (no balcony)
D8 Two Storey Capsule
The most high end capsule: yacht inspired, with a rooftop terrace over a one bedroom suite.
- Size
- 47.6m² + 27m²
- L × W × H
- F1: 14m × 3.4m × 3.2m, F2: 9m × 3m × 2.5m
From $235,000
View model: D8 Two Storey CapsuleNo models match those filters yet.
Indicative pricing. Final pricing is subject to site assessment, configuration and optional additions.
Specification
Materials & configuration
Shared across the E Series. Final configuration is confirmed per project.
Structure & materials
- Main frame
- 100 × 100mm galvanised steel pipe, about 2.6 tonnes, rust and corrosion resistant, anti seismic, does not deform after repeated lifts
- Exterior wall
- 2.5mm aluminium plate, fluorocarbon baked paint, rated for 30 years
- Insulation
- 50mm extruded polystyrene board plus 50mm sprayed polyurethane foam
- Glazing
- 6+15A+6mm insulated Low E glass, coated for privacy
- Floor build up
- Cement fibre board base with a pearl cotton insulation layer
- Structural board
- 8mm oriented strand board
- Floor
- Composite wood flooring
- Interior walls
- 6mm carbon crystal panel
- Base
- 4 to 6 galvanised steel bases for any terrain
Standard configuration
- Structure
- Anti seismic hot dip galvanised steel structure; multi layer thermal insulation
- Cladding & panels
- Custom aluminium outer cladding and ceiling panels, interior wall/ceiling panels and cabinetry in standard colours
- Glazing
- Aluminium door and window system with hollow Low E tempered glass curtain wall; 180° to 360° floor to ceiling windows
- Bathroom
- Brand name high end fixtures, dry and wet separation
- Services
- Brand name water pipes and wiring; whole house HVAC and water heater
- Comfort
- Whole house electric curtain track and sunshade; indoor lighting and indoor/outdoor ambient lighting
- Entry
- Insulated fireproof entrance door with smart access control; smart control panel for lights and curtains
Options
- Air & heating
- Fresh air system; underfloor heating
- Power
- Solar power supply system
- Layout
- Exclusive customised layout plan
Delivery & installation
From factory to site
-
Delivery
Capsules are too large for a standard 40ft container and usually ship on a 40ft flat rack. Only one unit fits per flat rack container.
-
Foundation
Before delivery, prepare 4 to 6 concrete footings or a steel foundation. Detailed instructions and drawings are provided, and plumbing and electrical pipes are pre installed on the exterior.
-
Installation
The capsule weighs 6 to 10 tonnes and is placed with a 25 to 35 tonne crane. For multi unit projects, engineers can attend to guide installation.
-
Connection
Connect the pre installed services to your local water and electricity supply.
