Overview

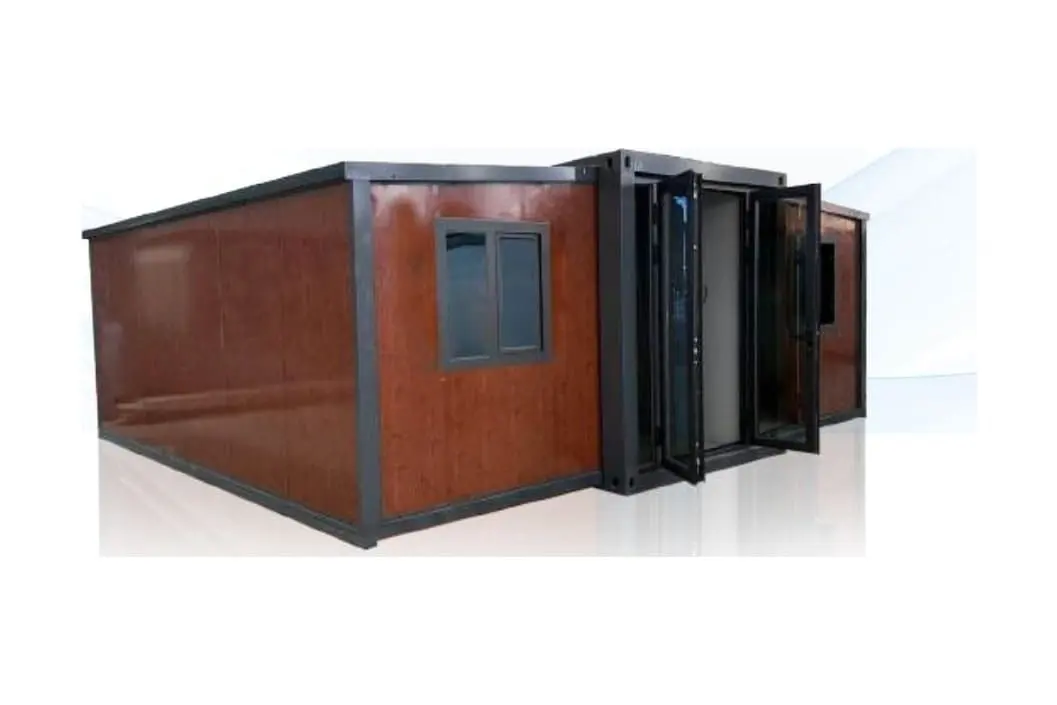

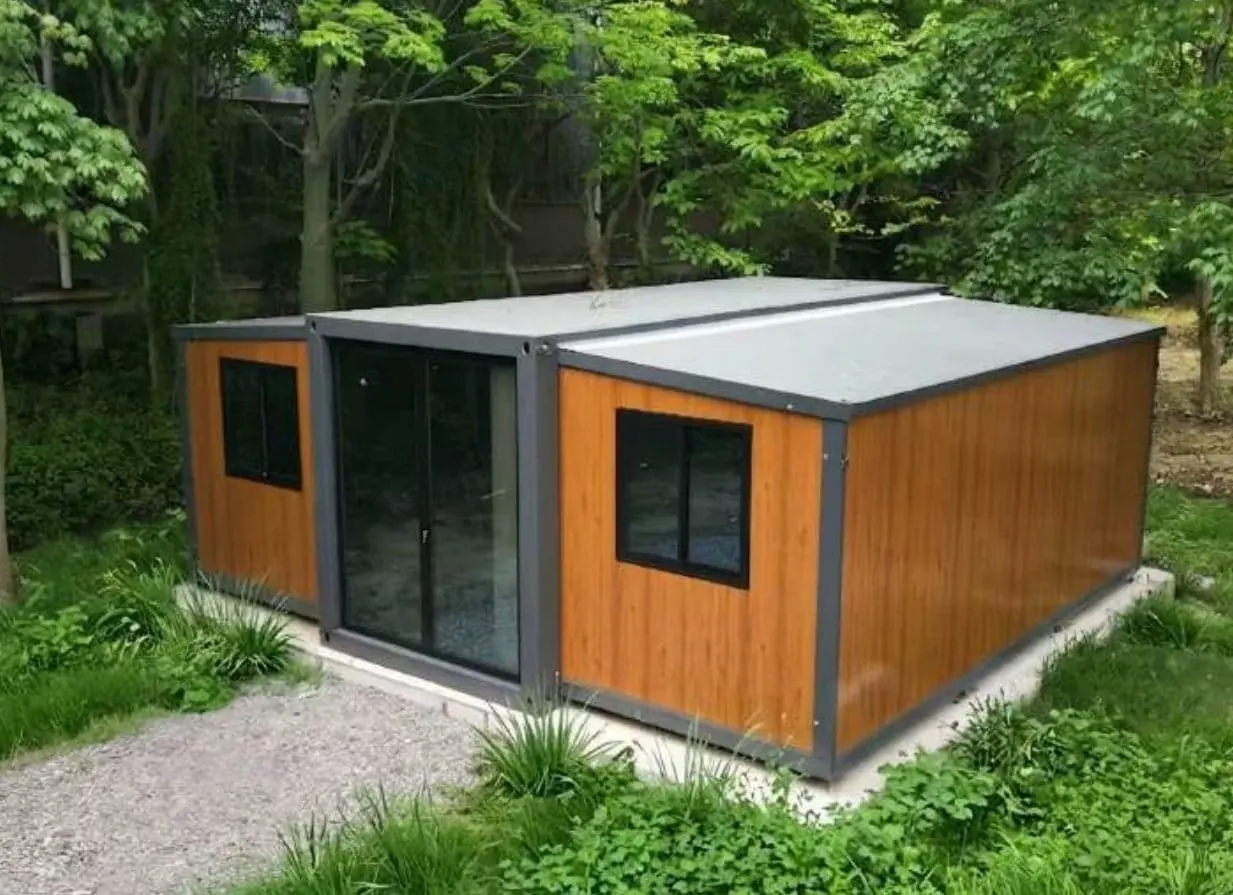

A basic model with cost saving materials for exterior walls, flooring, windows and other components, making it a highly cost effective option. The two bedroom, one bathroom, one living room layout is ideal for family housing, worker accommodation and vacation rentals.
Gallery

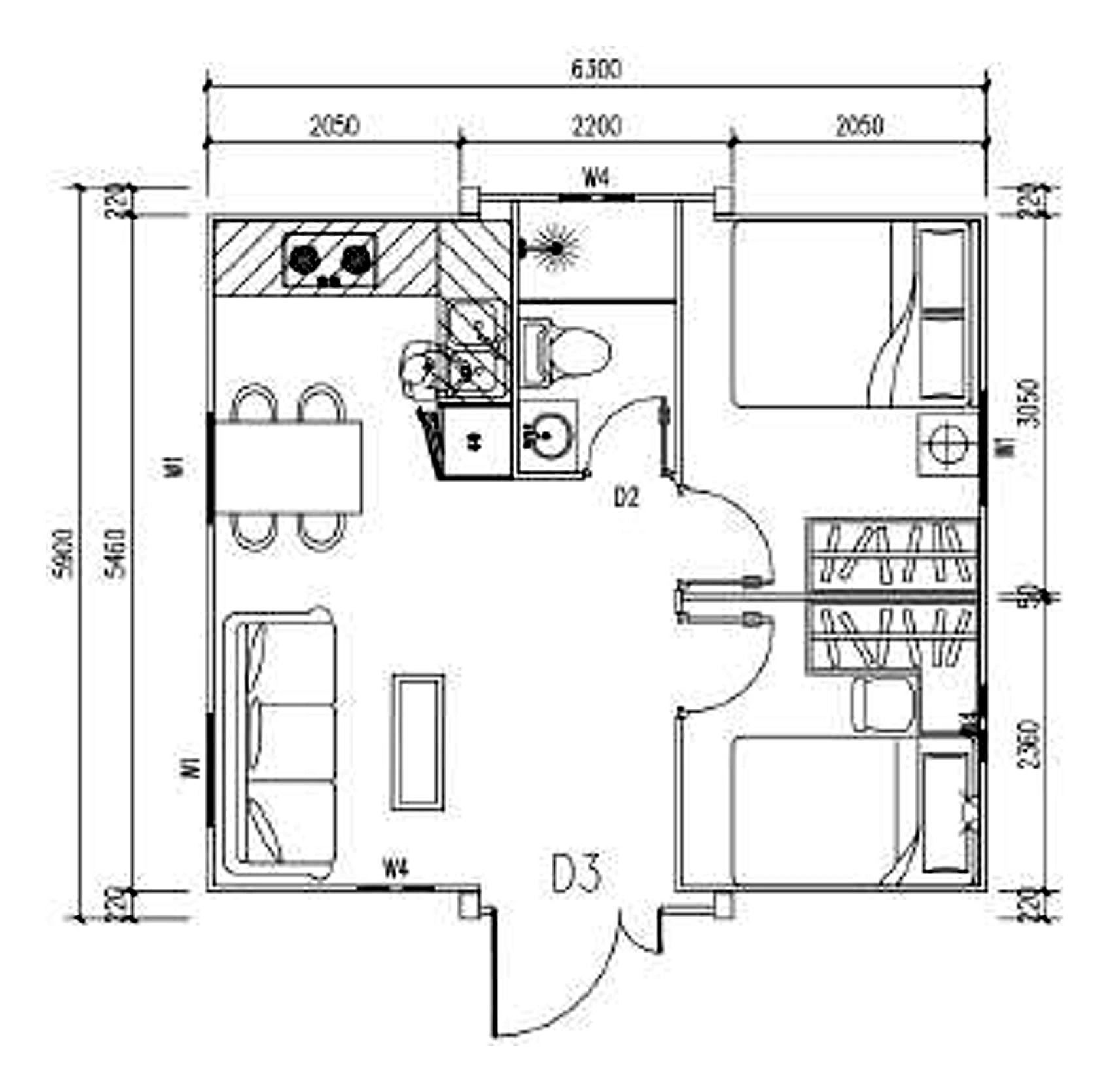

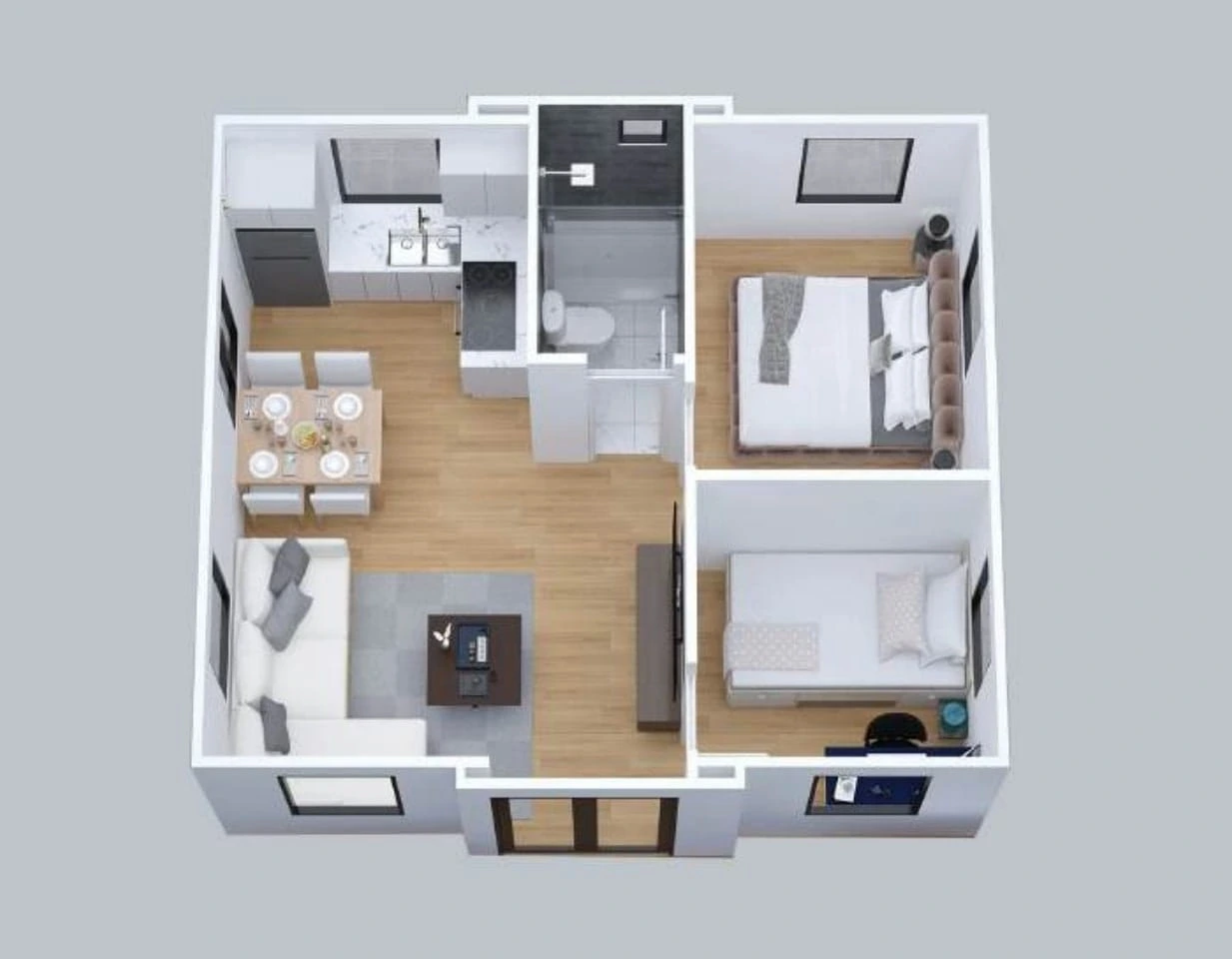

Photos and floor plans
Features & materials
Engineered, specified, finished
Structure
- Beam
- Galvanised steel pipe
- Steel column
- Galvanised steel pipe
Envelope
- Roof
- EPS foam board
- External wall
- EPS foam board, metal decorative panel
- Window
- Thermal break aluminium alloy window
- Door
- Thermal break aluminium alloy double door
Floors
- Top floor
- SPC floor or PVC vinyl
- Bottom floor, main cabin
- Cement fibreboard
- Bottom floor, side rooms
- Bamboo plywood
- Note
- Different configuration houses use different materials. Contact us for details.
Delivery & installation
From factory to site
-
Ships folded
Side rooms fold into the centre for transport. Two F20 units fit in one 40ft high cube container.
-
Footings
Footings are constructed and levelled for installation. The house can sit on hardened ground or several concrete footings.
-
Unfold
The rooms on both sides unfold and the house sits on the foundation via six supports.
-
Seal & finish
Weather sealing tape and caps are added at ceiling, wall and floor joins, then floor and ceiling trims are fitted.
-
Connect
Electrical, air conditioning, plumbing, water supply and septic connections are completed.
Questions
About this model
How long does installation take?
The house ships folded. Footings are built level, the rooms on both sides unfold onto the foundation via six supports, joins are weather sealed, trims are fitted and electrical, air conditioning, plumbing, water supply and septic connections are completed.
Which layouts are available?
Two bedrooms, one bathroom, one living room. The F20 is also available with 1, 2 or 4 bedroom layouts, and as flat roof, 2.4m ceiling, 2.8m ceiling, 100mm wall thickness and 2 story versions.
