F20 two storey expandable house exterior

Overview

Each floor has a two bedroom, one bathroom, one living room layout, making it ideal for worker accommodation, family housing and vacation rentals. It folds for shipping, one house per 40ft high cube container, and unfolds on site.

Gallery

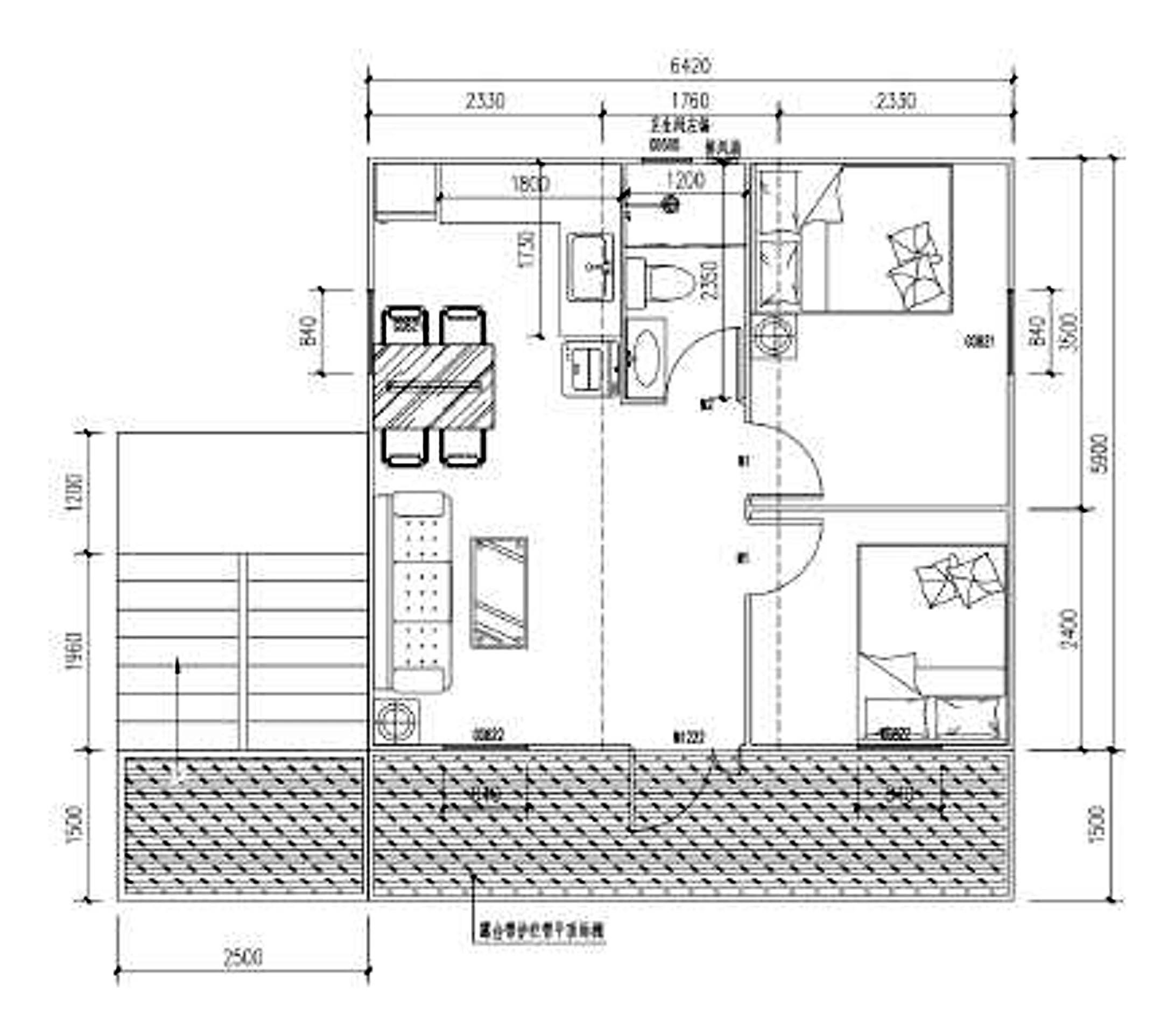

Photos and floor plans

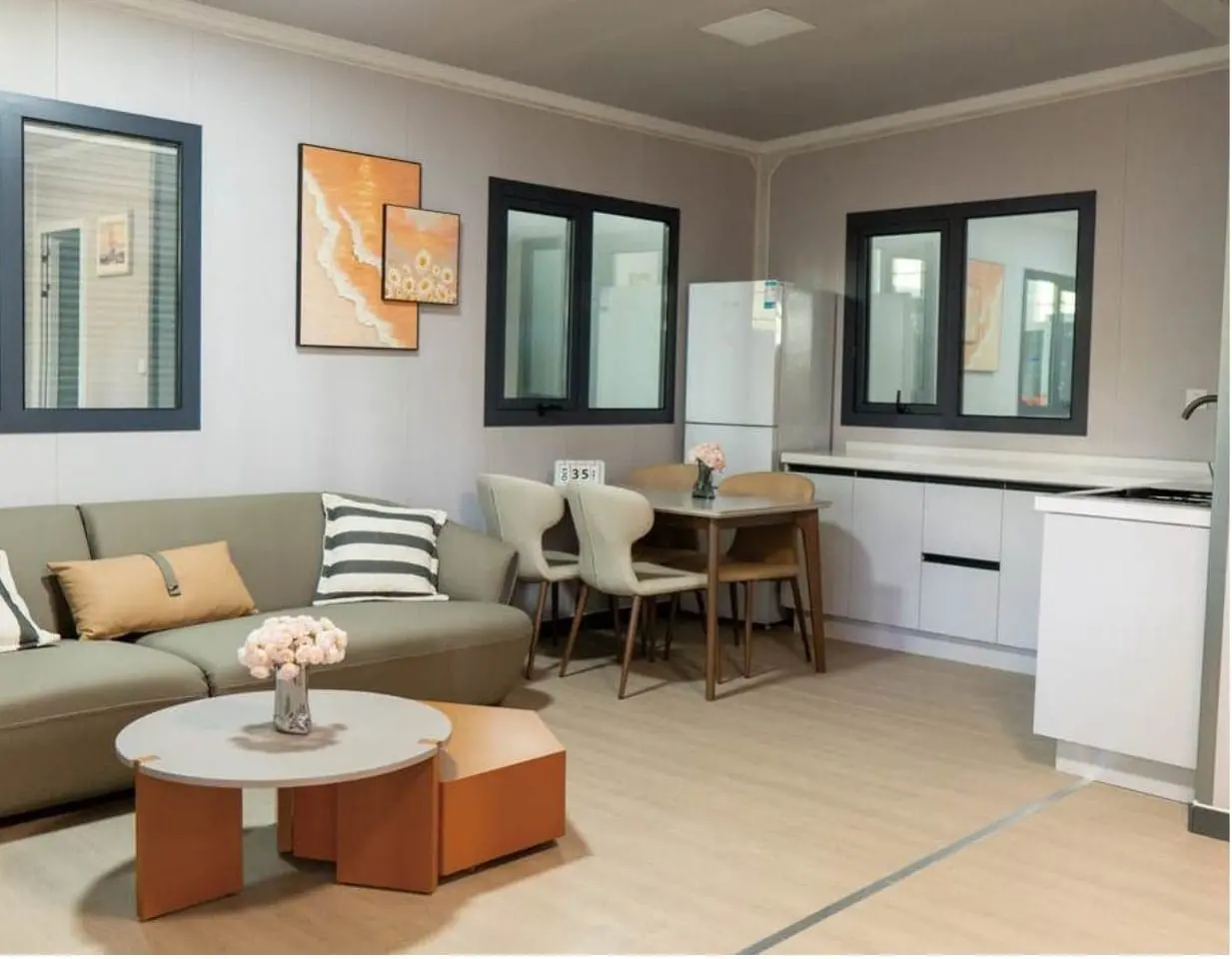

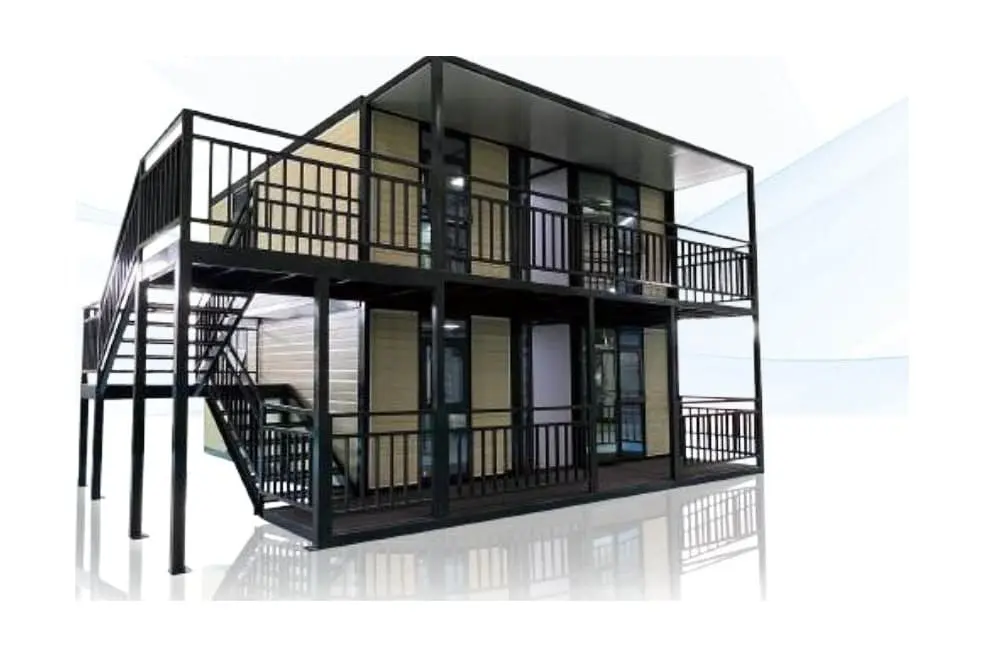

F20 two storey expandable house exterior F20 two storey expandable house interior F20 two story expandable house render

Features & materials

Engineered, specified, finished

Structure

Beam
Galvanised steel pipe
Steel column
Galvanised steel pipe

Envelope

Roof
EPS foam board
External wall
EPS foam board, metal decorative panel
Window
Thermal break aluminium alloy window
Door
Thermal break aluminium alloy double door

Floors

Top floor
SPC floor or PVC vinyl
Bottom floor, main cabin
Cement fibreboard
Bottom floor, side rooms
Bamboo plywood
Note
Different configuration houses use different materials. Contact us for details.

Delivery & installation

From factory to site

  1. Ships folded

    Side rooms fold into the centre for transport. One two storey F20 house fits in one 40ft high cube container.

  2. Footings

    Footings are constructed and levelled for installation. The house can sit on hardened ground or several concrete footings.

  3. Unfold

    The rooms on both sides unfold and the house sits on the foundation via six supports.

  4. Seal & finish

    Weather sealing tape and caps are added at ceiling, wall and floor joins, then floor and ceiling trims are fitted.

  5. Connect

    Electrical, air conditioning, plumbing, water supply and septic connections are completed.

Questions

About this model

How long does installation take?

The house ships folded. Footings are built level, the rooms on both sides unfold onto the foundation via six supports, joins are weather sealed, trims are fitted and electrical, air conditioning, plumbing, water supply and septic connections are completed.

Which layouts are available?

Two bedrooms, one bathroom, one living room on each floor. The F20 is also available with 1, 2 or 4 bedroom layouts, and as flat roof, 2.4m ceiling, 2.8m ceiling, 100mm wall thickness and 2 story versions.

20ft expandable house with a covered porch in a landscaped garden at sunset

F20 Expandable House (2 Story)

Make it yours.

Tell us about your site. We will confirm pricing, configuration and delivery for this model.
